" Dobby 45 Ton Power Press "

Enquire Now

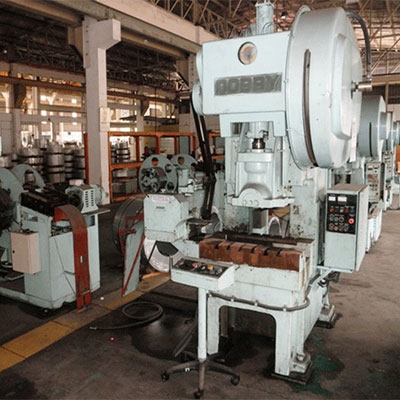

Dobby 45 Ton Power Press

MODEL NO.	YAMADA DOBBY
CAPACITY	45 TONS
SLIDE STROKE	20 MM
SLIDE ADJUSTMENT	50 MM
NO. OF STROKE	100-600 SPM
AREA OF UNDER FACE OF SLIDE(R.L X F.B)	350 X 320 MM
AREA OF BOLSTER(R.L X F.B)	720 X 450 MM
SHUT HEIGHT	265 MM
ATTACHMENTS	1. Gear Feeder 2. Leveller 3. Decoiler
