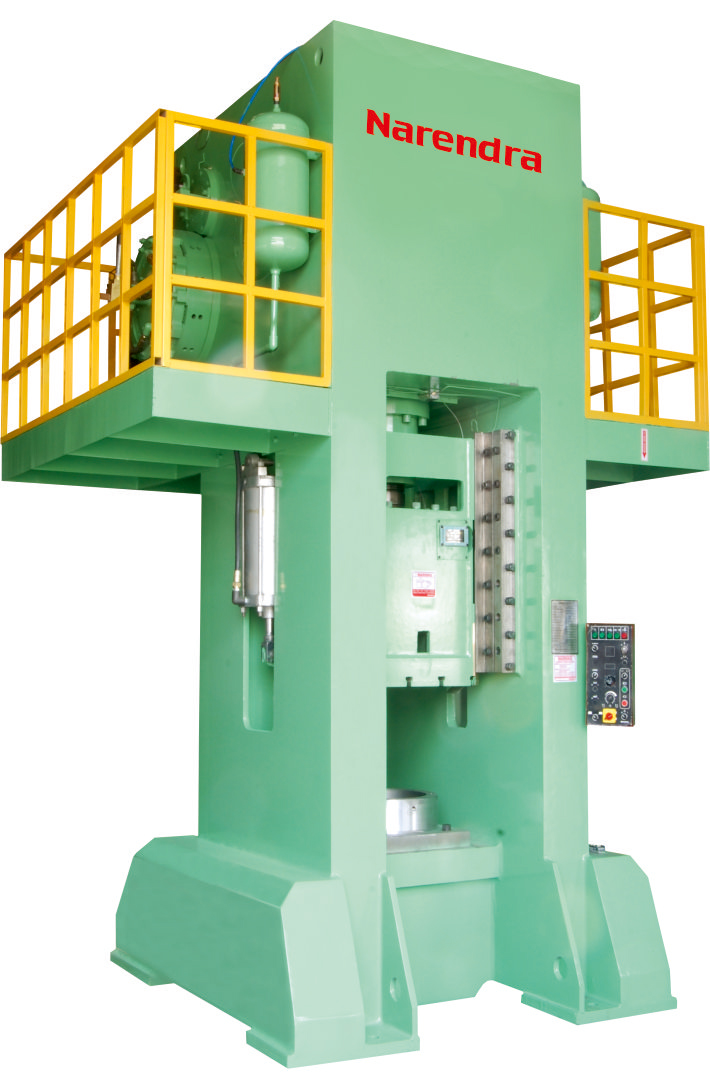

Single Point Crankless Press (NCL)

Application

Applicable to large type of heavy tonnage die tooling with multiple precision stages in blanking, piercing, bending, forming for single or progressive application.

Features

  • Hydraulic overload protection system
  • Extra long 8-points guide plate
  • Air counter balancer device
  • Automatic recirculating lubrication with distributing monitor device

Top Design

Advancement and Profession Are Our Feature

  • Operator Friendly Master Control Panel Display with signs, easy understanding and operation.
  • Digital Slide Adjustment Digital slide adjustment readout is recessed in front right slide of slide face and indicates the die height in 0.1 mm scale.
  • Safe And Reliable Electrical Circuit
  • Multi-checking electrical circuit design to ensure a safe and reliable operation.
  • High Rigidity And Low Noise Design
  • Less vibration and low noise. Increase tooling life and improve product's accuracy.

Technical Specifications


MODEL NCL-1-200 NCL-1-250 NCL-1-315 NCL-1-400 NCL-1-500 NCL-1-630 NCL-1-800 NCL-1-1000
CAPACITY TON 200 250 315 400 500 630 800 1000
B.D.C LIMIT MM 6 6 6 11 13 13 13 13
STROKE FIXED MM 300 300 300 400 450 450 500 500
STROKE PER MINUTE SPM 45 40 40 15 15 15 12 12
SHUT HEIGHT OVER BOLSTER MM 450 600 600 825 825 825 825 825
SLIDE ADJUSTMENT MOTORIZED MM 150 150 200 250 250 250 250 250
SLIDE FACE- LR X FB MM 1000 X 900 1000 X 900 1050 X 1100 1050 X 1250 1100 X 1250 1100 X 1250 1150 X 1250 1150 X 1250
SIZE OF BOLSTER- LR X FB MM 1200 X 1200 1200 X 1200 1250 X 1500 1250 X 1500 1300 X 1500 1300 X 1500 1350 X 1500 1350 X 1500
BOLSTER THICKNESS MM 140 150 160 200 200 215 230 240
HT. OF BOLSTER SURFACE FROM FLOOR MM 900 900 900 900 900 900 900 900
MOTOR Kw 15 18.5 22 30 37 45 55 75
SLIDE ADJUSTMENT MOTOR Kw 1.5 2.2 2.2 3.7 3.7 5.5 5.5 5.5
DIE CUSION CAPACITY AT 7.3 kg/cm2 TON 18 28 40 55 80 80 95 95
DIE CUSION PAD AREA- LR X FB MM 800 X 500 800 X 500 800 X 500 800 X 500 800 X 500 800 X 500 800 X 500 800 X 500
STROKE OF CUSION MM 150 150 150 200 200 200 200 200
AIR PRESSURE REQUIRED FOR CLUTCH kg/cm2 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5
