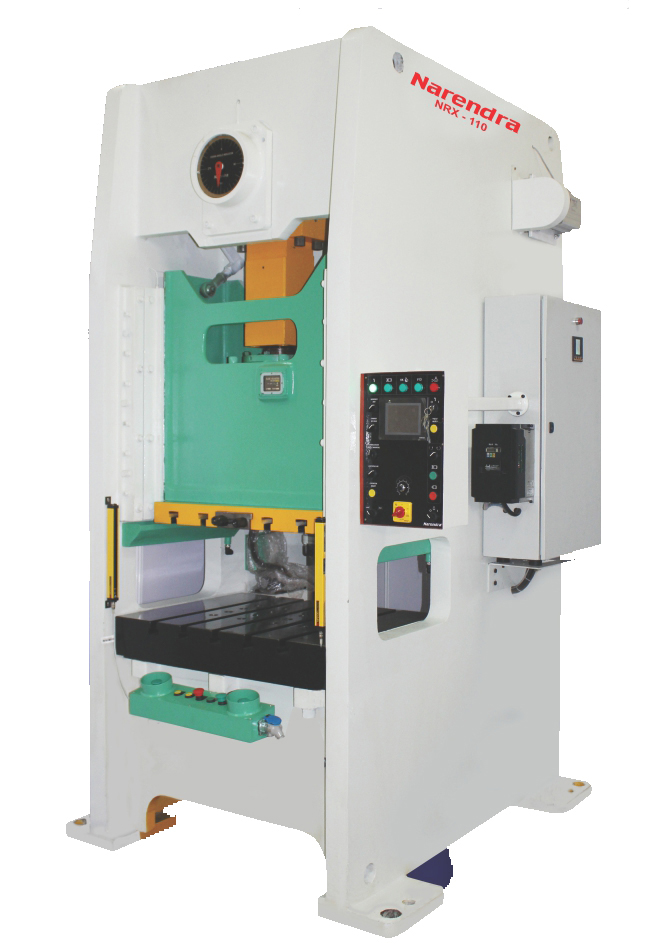

Ring Frame Cross Shaft Press (NRX)


Applicable to light, thin material, for single, and progressive die application in blanking, piercing, bending, forming, interlink with ROT line or transfer unit.


Straight side frame designed virtually eliminates angular deflection, providing increased precision for progressive die applications and reducing maintenance costs on tooling.

The slide area is 15 %~25% greater than comparable C-frame presses to allow for larger tools. The large 6-point gibs are centered in the slide body, to provide better resistance to off-center loads.

User friendly , multi-function control system allows for easy integration of auxiliary equipment and automation.
