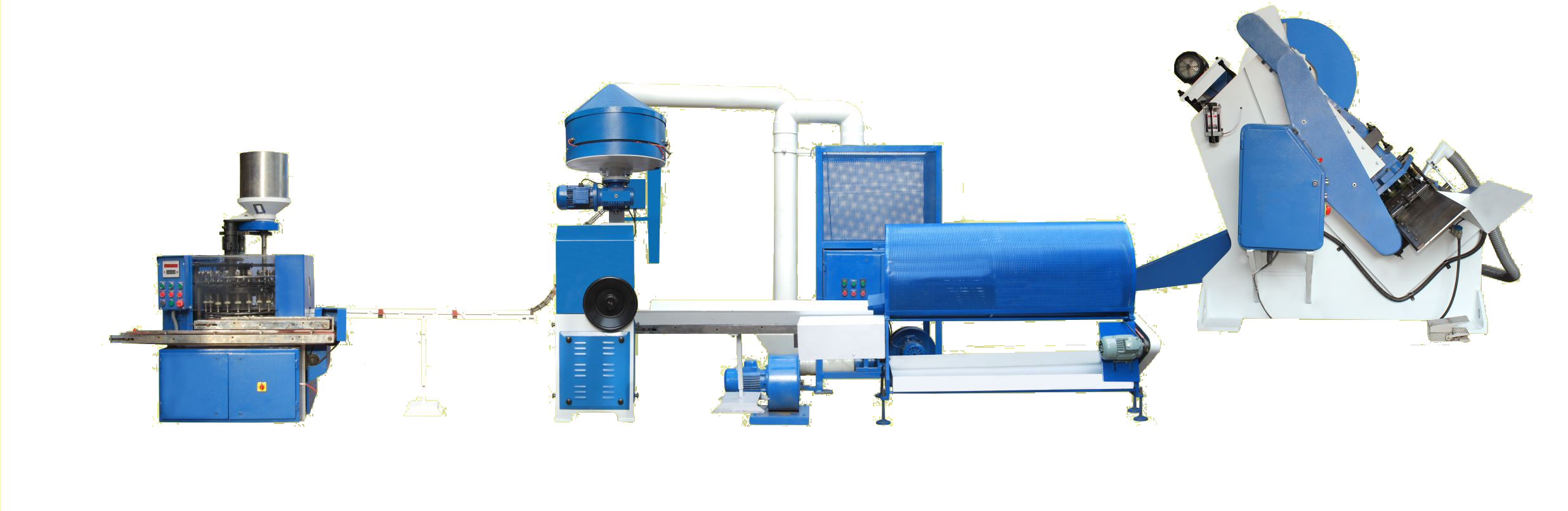

Pilfer Proof Caps Making Machinery

Model	NWA-I	NWA-II
Product	Pilfer Proof Caps, Roll-on Caps	Pilfer Proof Caps roll-on Caps
Operation	Wad fitting.	Wad fitting.
Range	For Diameters from 22 mm to 38 mm (with change parts)	For Diameters from 22 mm to 38 mm (with change parts)
Output	300 Caps per minute	400 Caps per minute
Installed Power	2. 5 H.P.	3 H.P.
Gross Weight	950 kg (Approx. )	1200 kg (Approx. )
Floor Area	1200 mm (L) x 1300 mm (W) x 1700 mm (H)	1200 mm (L) x 1300 mm (W) x 1700 mm (H)

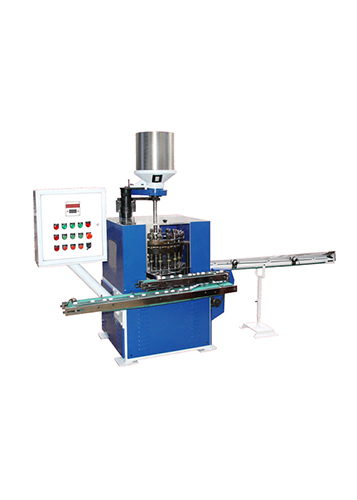

The Rotary Wad Assembly machine is newly designed machine which offers high speed production. Caps are fed from Multi Spindle Knurling Machine with position and delivered to wad assembly machine. The wad are inserted in the cap by vacuum sucking. The machine is equipped with suitable electrical, control panel, vacuum pump, inspection conveyor and mechanical hopper for wads.

"MACHINE ALSO AVAILABLE FOR EXTRA BEEP CAP"

Model	NWA-II
Product	Pilfer Proof Caps, Roll-on Caps, Screw Neck, Shoe Polish, Nivea, Torch Component, Miniature cap threading and other type of Auto Bulb Holder.
Operation	Knurling, Thread Rolling, Curling, Beading and Trimming
Range	For Diameters from 22 mm to 53 mm (Deep caps on request).
Output	70 Caps per minute
Installed Power	1 H.P.

(Cap feeder device model is also available)
COMBINATION TOOL SETS Narendra also offers special tools for screw type closures, Thread-Rolling, Curling, Trimming and Knurling operation.

Model	TRM-V	TRM-VI
Spindal	Five	Six
Output	300 Caps Per Minute	400 Caps Per Minute
Product	Pilfer Proof Caps, Roll-on Caps	Pilfer Proof Caps, Roll-on Caps
Installed Power	2 H.P.	2.5 H.P.
Grossed Weight	950 kg (Approx.)	1200 kg (Approx.)
Overall Dimension	2000 mm (L) x 1050 mm (W) x 1750 mm (H)	2000 mm (L) x 1050 mm (W) x 1750 mm (H)

Multiple Spindle Knurling Machine is newly designed machine which offers high speed production. Caps are fed into the machine by feeder device unit in position and delivered to combination tool set and the complete cap come with single direction by taper shute and deliver to wad assembly machine. Wearing Parts such as knurling and perforated cutters can be quickly replaced, without any need to dismantle the whole unit. Photo cells in the feed and delivery channels provide regular cap inflow and outflow. The chuck are controlled by helical gear and feature a system for simple alignment of knurling tool.

The unit is fitted with electromagnetic motor, switch board, safety switch and one set of combination tool set of any size. Knurling cut on gear hob with fine cut and match with spindle ration,

Resulting
better finish, no overlap on the cap and extended tooling life.

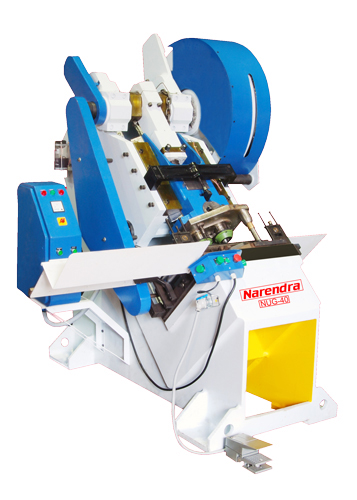

The machine is specially designed for High Speed Production Of Deep Draw Caps with the following features

• Cap feeder device
• Reverse Redraw
• Twin Cavity Die Set
• Carbide tool
• In Built Pneumatic Die Cushion

We design and develop carbide tooling for draw, redraw, trimming, extrusion, transfer progressive tool to meet customer's requirement.

Narendra offers dies for pilfer-proof caps, roll-on caps, crown caps, screw neck, nivea, pull of caps. All the die parts are made from special quality imported die steel properly hardened and ground finished for longer life. Pillars set is made from good quality E.N. steel duly stressed relieved and hand scraped. These dies are manufactured according to ISI standard specification (ISI : 8393-1977). The die is designed to cut, draw and trim in one operation.

Roll Feed Attachment
Narendra precision roll feed attachment is most suitable for automatic feeding the cutstrips in front of dies, It is therefore possible to punch out the caps from printed sheet very accurately. The strip is automatically transported forwarded after each stroke. The press accuracy is maintained by controlling pilot.

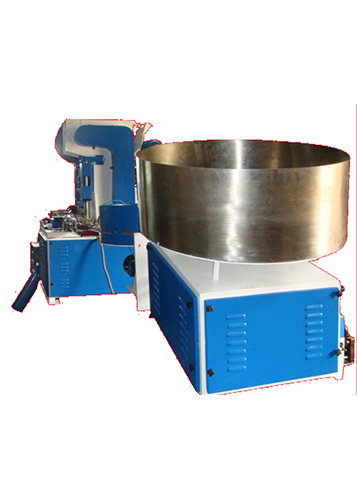

Narendra offers wide range of mechanical cap feeder devices such as groove feeder, centrifued feeder, step type feeder, rotary plug type etc. for different sizes and capacities to produce round draw shells to suit the customer's requirement.
